Q-BOX-3

Model : Q-BOX-3

Description :
◆Light and Compact Embedded system design,Support Intel Atom D525 series Processor;
◆Onboard DDRⅢ 2GB/4GB ddr3,Fanless/Noiselessness Design,High Stability;
◆Mini-PCIE socket,support wifi module,SIM Card socket，Support 3G module；
◆ Rich I/O ports，include 4*USB ports,6*COM ports、1*VGA、1*LVDS ；
◆ 12V DC and 16-40V wide voltage power supply（Optional);

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆Light and Compact Embedded system design,Support Intel Atom D525 series Processor;

◆Onboard DDRⅢ 2GB/4GB ddr3,Fanless/Noiselessness Design,High Stability;

◆Mini-PCIE socket,support wifi module,SIM Card socket，Support 3G module；

◆ Rich I/O ports，include 4*USB ports,6*COM ports、1*VGA、1*LVDS ；

◆ 12V DC and 16-40V wide voltage power supply（Optional)

Specifications

? Case	Name	Q-BOX-3
	Colour	Gray
	Size	185.219463.5
	Material	6063
? ? Motherboard	Chipset	ICH8
	CPU	Onboard Intel Atom D525?processor
	Memory	Onboard DDRⅢ 2GB/4GB?RAM
	Graphics	Integrated Intel?GMA3150 Graphics
	Audio	Integrated Realtek?ALC662?HD
	Expansion Socket	1*MINI-PCIE?socket，can add wifi、3G?module
	Expansion Socket	1*MINI-SATA?socket，can add SSD
Storage	HDD	2.5inch HDD
Storage	SSD	SSD
Function	Display Outputs	LVDS、VGA
	Network Outputs	2*Realtek 81111 EL(1000M LAN)
	COM	5RS232、1RS422/485
	USB	4*USB2.0

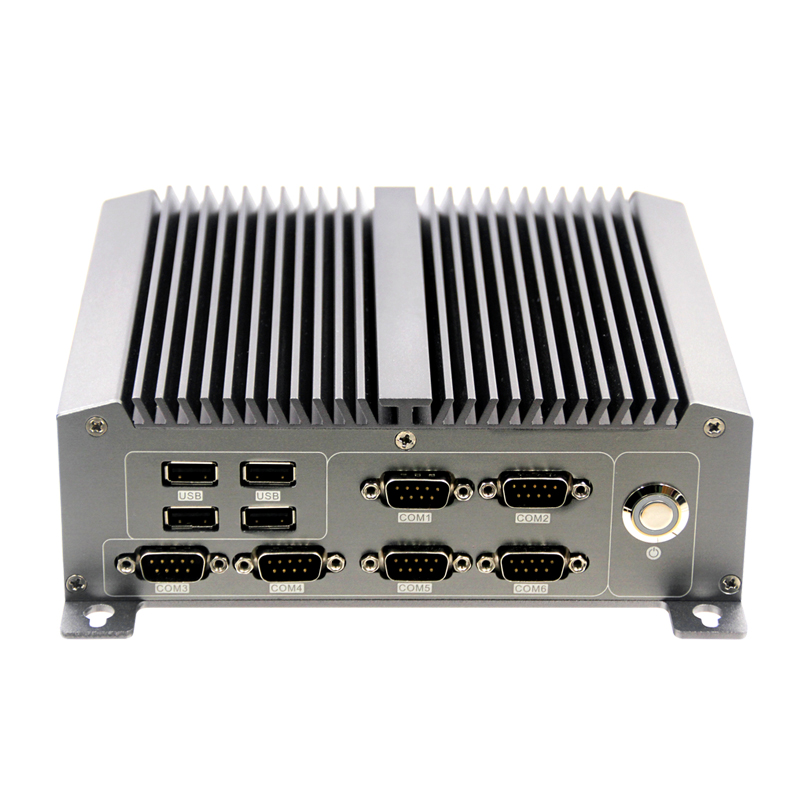

	Front I/O?ports	1Power Switch、5RS232、1RS422/485、1LVDS

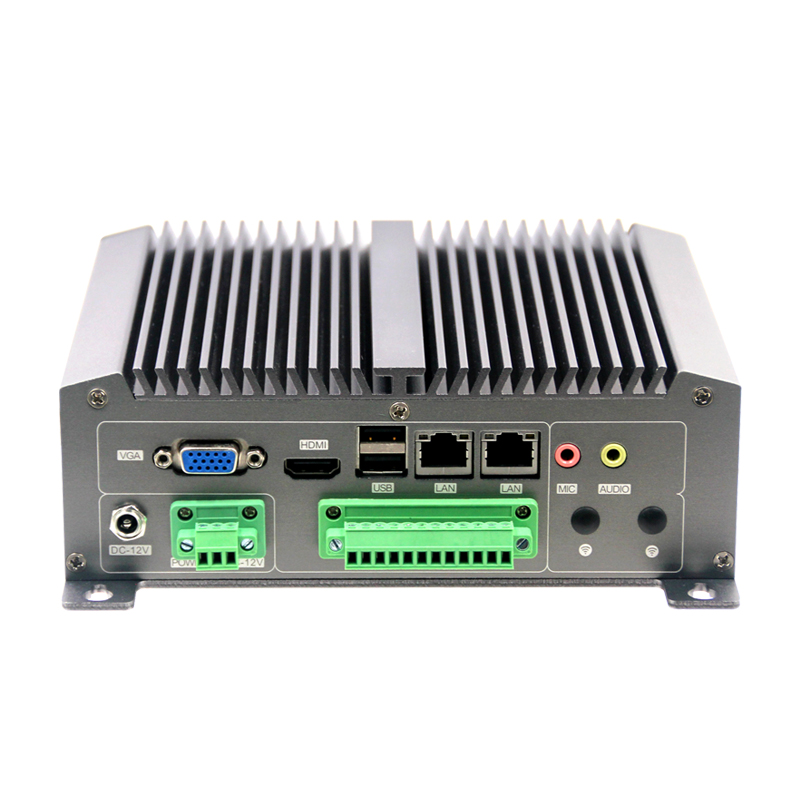

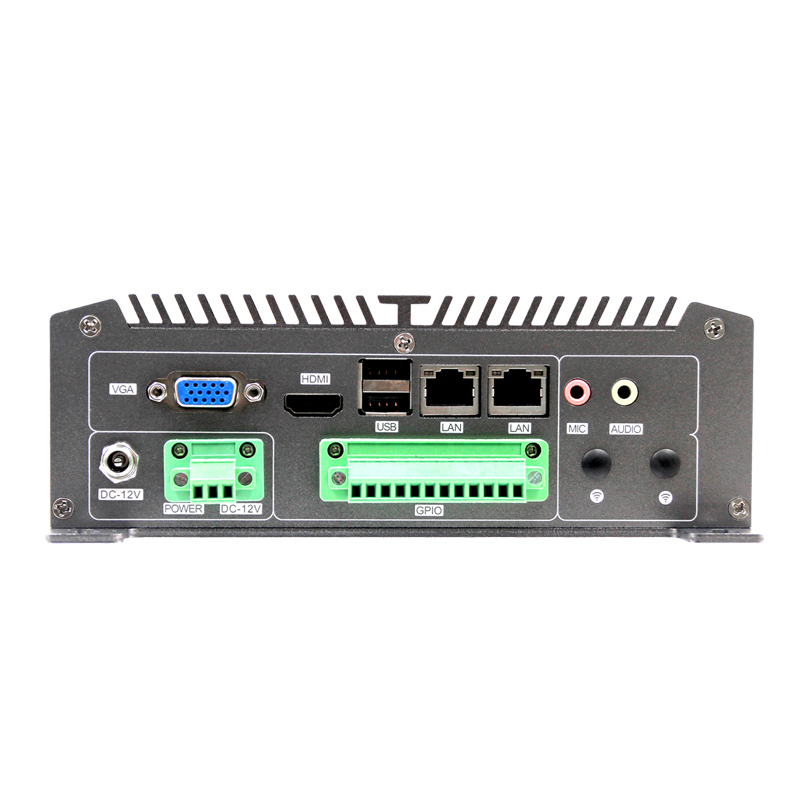

	Rear I/O?ports	2USB、2LAN、1MIC、1AUDIO、1VGA、1DC12V?power interface、116-40V?wide voltage power supply、1GPIO
	Working temperature	-10~60℃
	Operating System	WindowsXP，Windows7、linux
	Power Supply	DC12V?and 16-40V?wide voltage power supply（optional)

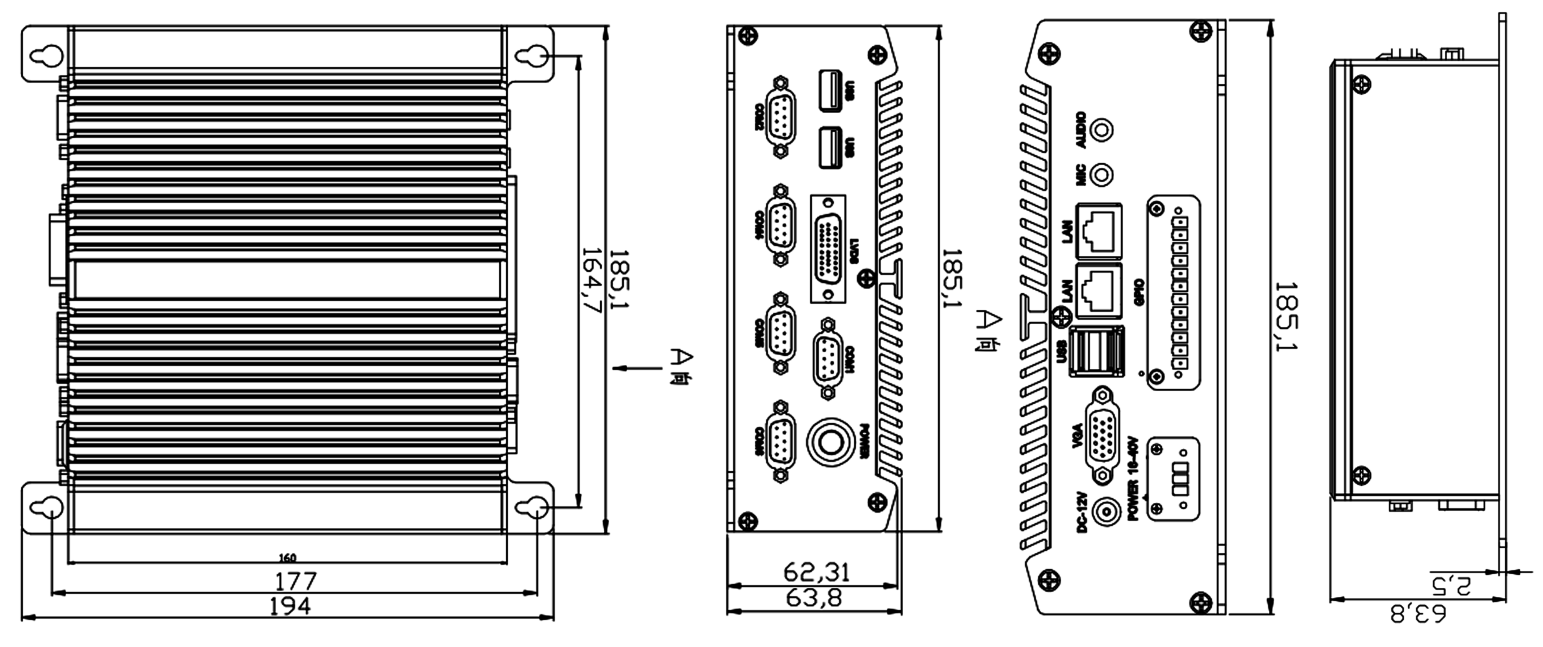

Size??

Order information

Model

Description

CPU(Optional)

BT203-J1900/N2806

Integrated celeron Baytrail-D/I/M

Onboard 2G/4GDDR3，（max support 8gb DDR3)

Integrated?16-512G SSD(Optional）

J1900,N2900(quad core）J1800,

N2806（dual core）

D525-3/N550-3/N450-3

Integrated Intel Atom processor,dual core 1.8G，Onboard 2G?ddr3，6*COM ports，8*USB

D525（TDP）13W

N550（TDP）8.5W

N570（TDP）8.5W

N450（TDP）5.5W

D2550-3/N2600-3/N2800-3

Integrated NM10?chipset

Integrated Intel Atom D2550?processor,dual core 1.86G

Onboard 2G?or 4G?memory，6*COM ports，8*USB

D2550（TDP）10W

N2600（TDP）3.5W

N2800（TDP）6.5W

HU803-i3/i5i7

Integrated Intel core Haswell-u

Onboard 2G/4GDDR3?memory（max support 8gb DDR3）

Integrated SSD（16-512G）(Optional)

I3-4120U dual core 2.0GHZ ?15W

I5-4200U dual core 1.6GHZ-2.6GHZ ?15W

I5-5200U dual core 2.2GHZ-2.7GHZ ?7.5-15W

I7-4500U dual core 1.8GHZ-3.0GHZ ?15W
