Q-BOX-7

Model : Q-BOX-7

Description :
◆Light and Compact Embedded system design,Support Intel Atom D2550 series Processor;
◆Onboard DDRⅢ 2GB/4GB ddr3,Fanless/Noiselessness Design,High Stability;
◆Mini-PCIE socket,support wifi module,SIM Card socket，Support 3G module；
◆Rich I/O ports，include 4*USB ports,6*COM ports、1*VGA、1*HDMI;
◆ 12V DC and 16-40V wide voltage power supply（Optional);

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆Light and Compact Embedded system design,Support Intel Atom D2550 series Processor;

◆Onboard DDRⅢ 2GB/4GB ddr3,Fanless/Noiselessness Design,High Stability;

◆Mini-PCIE socket,support wifi module,SIM Card socket，Support 3G module；

◆Rich I/O ports，include 4*USB ports,6*COM ports、1*VGA、1*HDMI;

◆ 12V DC and 16-40V wide voltage power supply（Optional)

Specifications

? Case	Name	Q-BOX-7
	Colour	Blue
	Size	185.219463.5
	Material	6063
? ? Motherboard	Chipset	NM/10
	CPU	Onboard Intel Atom D2550 processor
	Memory	Onboard DDRⅢ 2GB/4GB?memory
	Graphics	Integrated Intel?GMA3600 Graphics
	Audio	Integrated Realtek?ALC662?HD
	Expansion Socket	1*MINI-PCIE?socket，can add wifi、3G?module
	Expansion Socket	1*MINI-SATA?socket，can add SSD
Storage	HDD	2.5inch HDD
Storage	SSD	SSD
? ? ? ? Function	Display Outputs	VGA、HDMI
	Network Outputs	2*Realtek 81111 EL(1000M LAN)
	COM	5RS232、1RS422/485
	USB	4*USB2.0

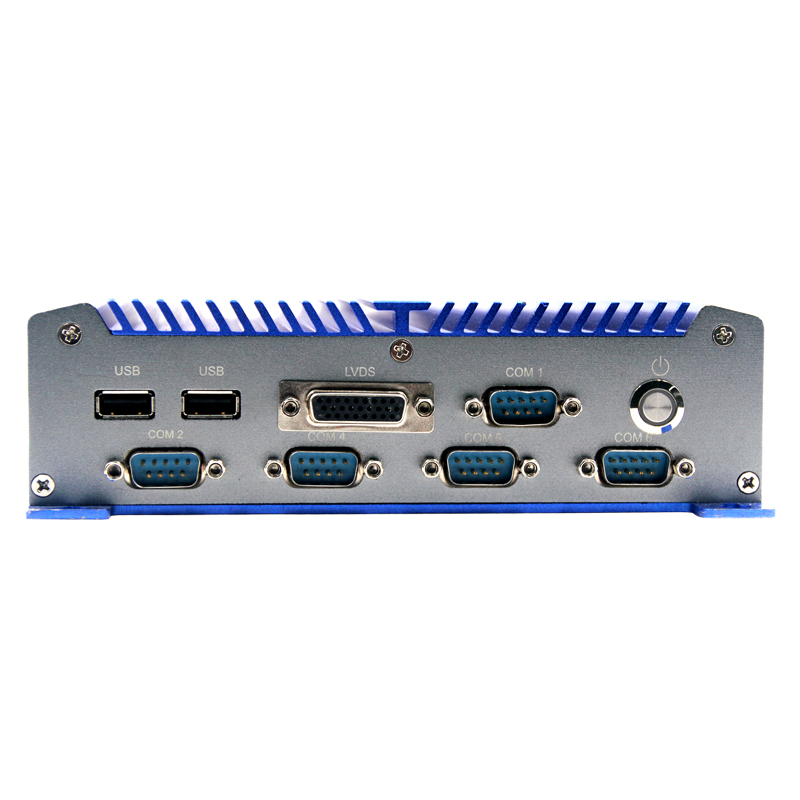

	Front I/O?ports	1Power Switch、5RS232、1RS422/485、2USB2.0

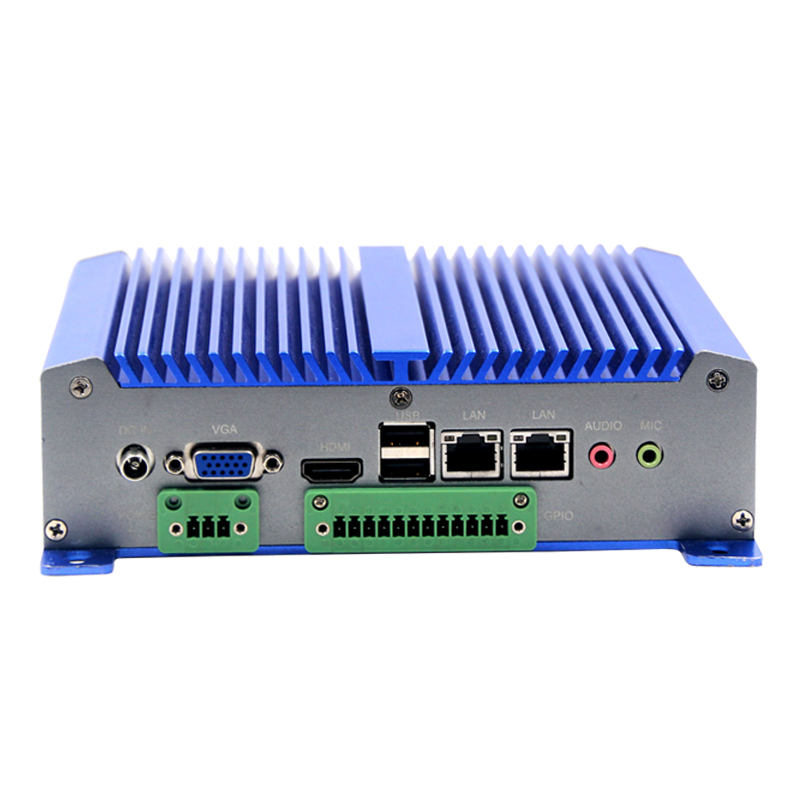

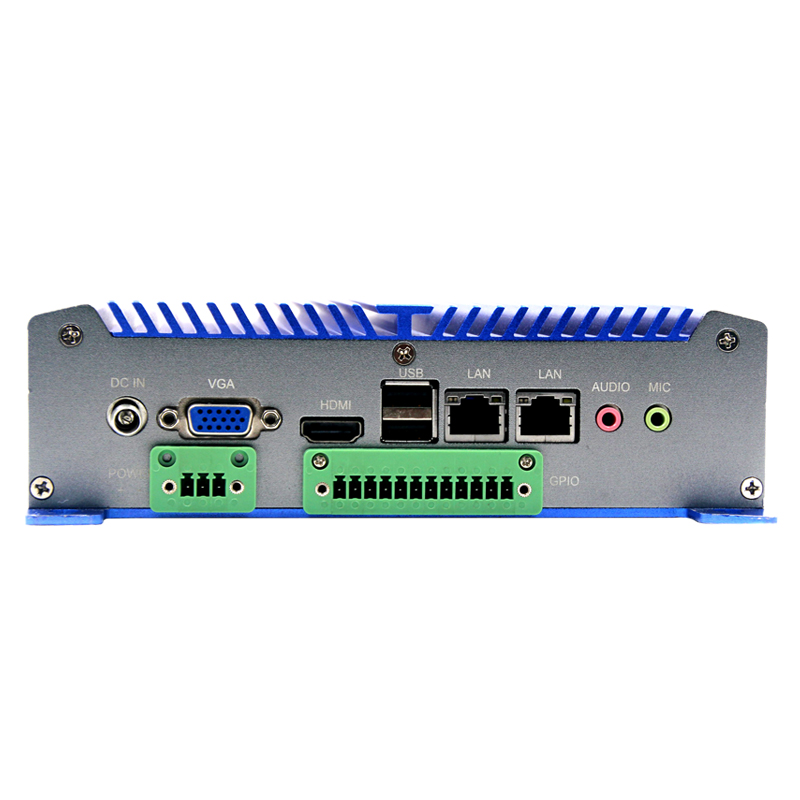

	Rear I/O?ports	2USB、2LAN、1MIC、1AUDIO、1VGA、1HDMI、1DC12V?power interface、116-40Vwide voltage power supply、1*GPIO
	Working temperature	-10~60℃
	Operating System	WindowsXP，Windows7、linux
	Power Supply	DC12V?and 16-40V?wide voltage power supply（optional)

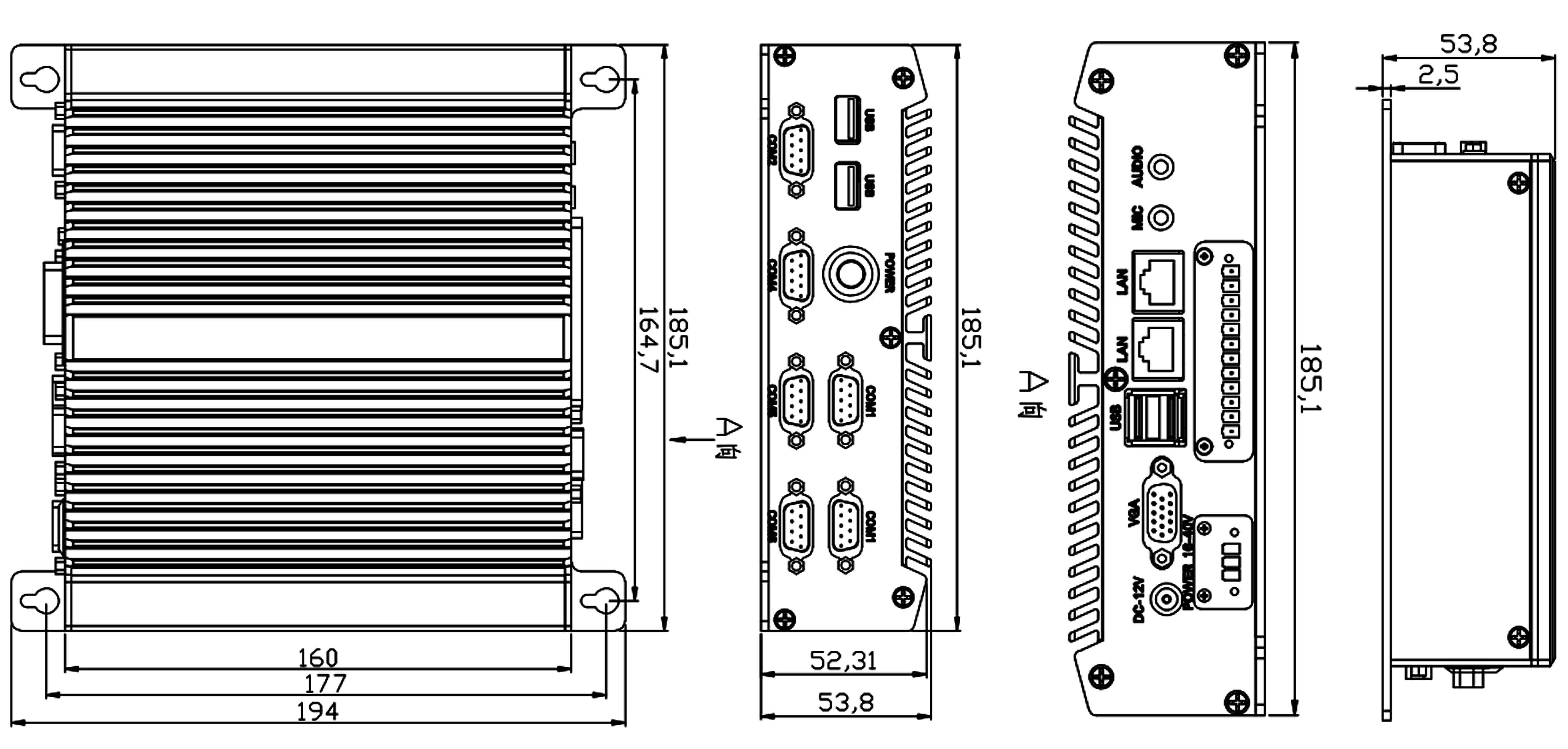

Size?

Order information

Model

Description

CPU(Optional)

SW2825

Integrated NM10?chipset

Integrated Intel Atom D2550?processor,dual core 1.86G

Onboard 2G?or 4G?memory，6*COM ports，8*USB

N2800（TDP）6.5W

Q-BOX-7
