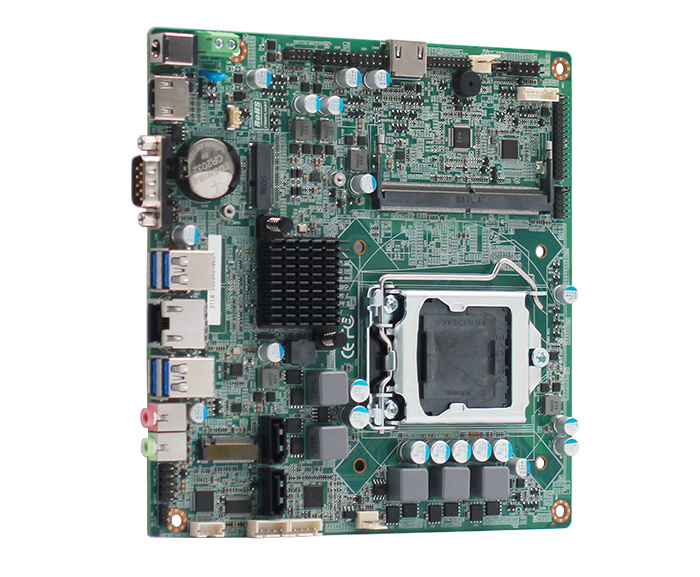

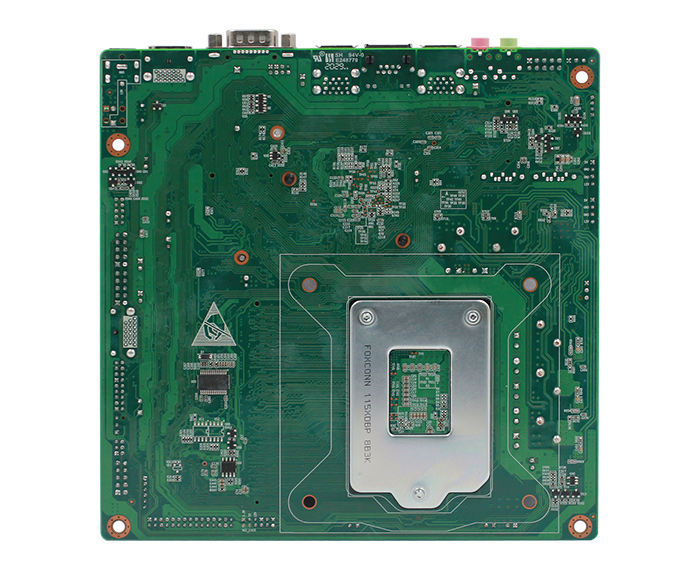

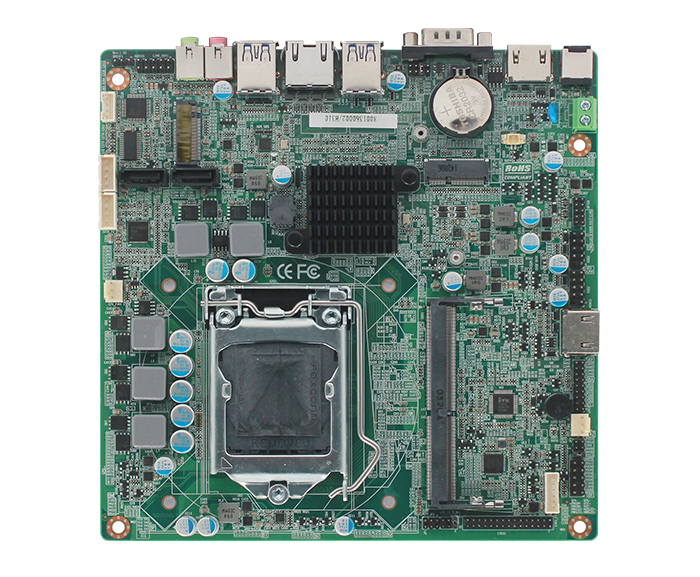

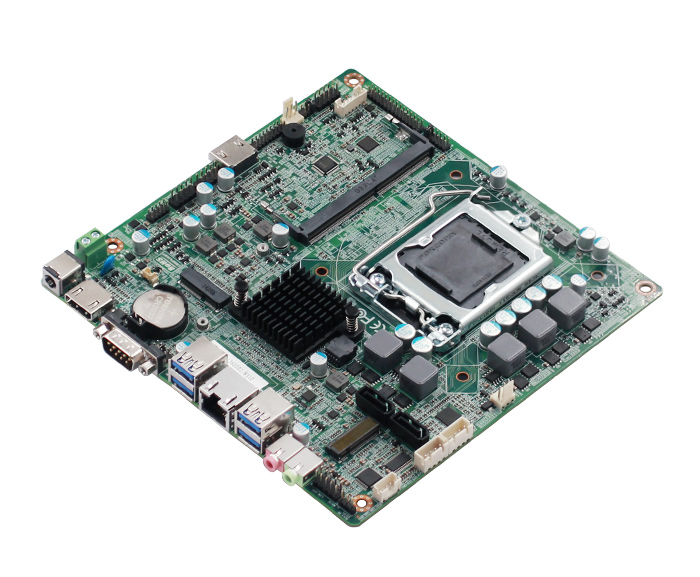

TOP360B

Model : TOP360B

Description :
◆ Adopt Intel 8/9th genneration Core,Pentium,Celeron,serial processor;
◆ 1*DDR4 SO DIMM 260 Socket,MAX 32G；
◆ 2*HDMI,1*DB9 COM,1*LVDS/EDP（EDP OR LVDS optional)；
◆ Onboard dual-channel power amplifier, each channel supports 6W 8Ω speaker；
◆ 1*Realtek RTL8111H 10M/100M/1000M adaptive network card；
◆ 1*DB9 COM,support RS232 or 1*RS485 plug pin(Function selection by jumper)；
◆ 1*KEY-Msocket,support M KEY 2240/2260/2280 NVMe protocol or SATA SSD ◆ 1*KEY-E socket,support E KEY 2230 WIFI,support CNVi protocol；
◆ DC 12V power supply (95W CPU matches with≥180W power supply，65W的CPUmatches with ≥120Wpower supply）；
◆ Size170 x 170 mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Adopt Intel 8/9th genneration Core,Pentium,Celeron,serial processor;

◆ 1*DDR4 SO DIMM 260 Socket,MAX 32G；

◆ 2*HDMI,1*DB9 COM,1*LVDS/EDP（EDP OR LVDS optional)；

◆ Onboard dual-channel power amplifier, each channel supports 6W 8Ω speaker；

◆ 1*Realtek RTL8111H 10M/100M/1000M adaptive network card；

◆ 1*DB9 COM,support RS232 or 1*RS485 plug pin(Function selection by jumper)；

◆ 1*KEY-Msocket,support M KEY 2240/2260/2280 NVMe protocol or SATA SSD

◆ 1*KEY-E socket,support E KEY 2230 WIFI,support CNVi protocol；

◆ DC 12V power supply (95W CPU matches with≥180W power supply，65W CPUmatches with ≥120Wpower supply）；

◆ Size170 x 170 mm；

Main features

Processor System	CPU	Support Intel 8/9th genneration Core,Pentium,Celeron,serial processor;
	CPU PACKAGE	Intel LGA 1151
	Chipset	Intel H310
	BIOS	EFI BIOS
RAM	Technology Architecture	Single channel DDR4-1866/2133/2400/2666 1.2V ram,MAX Support 32G
RAM	Socket	1*DDR4 SO-DIMM ram socket，MAX support 32GB
Video	Graphic controller	Integrated INTEL HD Core Graphics,graphics models related to CPU
	Dual LVDS and EDP	LVDSsupport dual channel 24bit output,Max support resolution 1920 x 1200 EDP;Max support resolution 4096*2304@60Hz（LVDS or EDP only can choose one）
	HDMI	HDMIsupport MAX resolution 4096*2160@30Hz
	Dual Display	LVDS/EDP+ HDMI1,LVDS/EDP+ HDMI2,HDMI1+HDMI2 SYNC or ASYN display
	Tripple Display	LVDS/EDP+HDMI1+HDMI2 SYNC or ASYN display

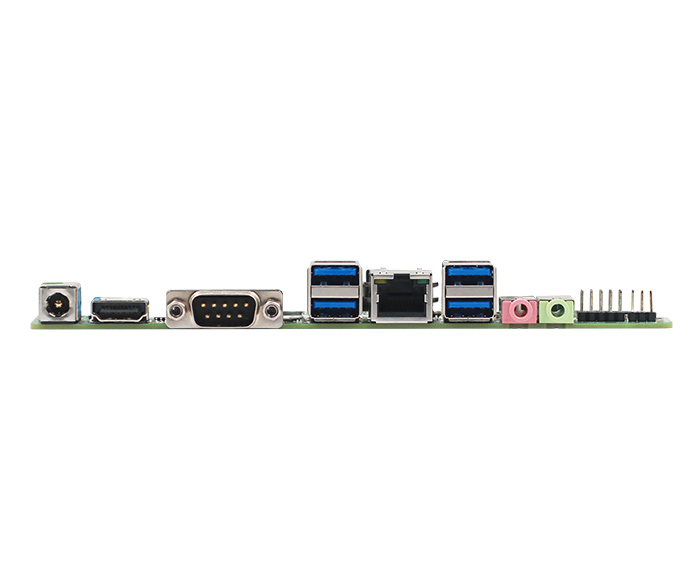

I/O Back Panel	ports	1DCIN,1DB9,2HDMI,1LAN,4USB3.1,1LINE OUT,1*MIC
Network	Controller	1 Realtek RTL8111H,10M/100M/1000Madaptive network card
Audio	Controller	Realtek HD ALC662 Audio decoding (left and right channels + microphone)
Super I/O	Controller	IT8613E
Hardware monitoring	Watchdog timer	0-255 seconds, provide watchdog routine
Hardware monitoring	Cooler	Aluminum radiator with fan (supports automatic and manual fan speed adjustment)
Input/output interface	USB	2*USB3.0
	COM	1DB9 COM，Suport RS232 or 1RS485 1X2 2.0 plug pin（Choose one of the two functions, select by changing the resistance and jumper）
	PS/2	1*PS/2Pin interface (support PS/2 keyboard and mouse)
	GPIO	8 bits, provide routines, freely define input/output, 3.3V@24mA level
Expansion bus	M.2	Support M.2 CNViprotocol WIFI
Storge	SATA	2 standard SATAIII interfaces, maximum transfer rate 6Gb/s
Storge	M.2 NVMe/SATA	NGFF_SSD1：suport M KEY 2240/2260/2280 NVMeprotocol or SATA SSD
Power supply	Power type	DC 12V power supply (95W CPU matches with≥180W power supply，65W的CPUmatches with ≥120Wpower supply）
working environmen	working temperature	-20℃ ~ +60℃
	Storge temperature	-40℃ ~ +85℃
	Operating humidity	0% ~ 90% relative humidity, no condensation
	Storage humidity	0% ~ 90% relative humidity, no condensation
Support system	OS	Windows10 Linux
physical dimension	size	170 x 170 mm
physical dimension	N.W	0.5KG
Certification		CE,RoHS,FCC

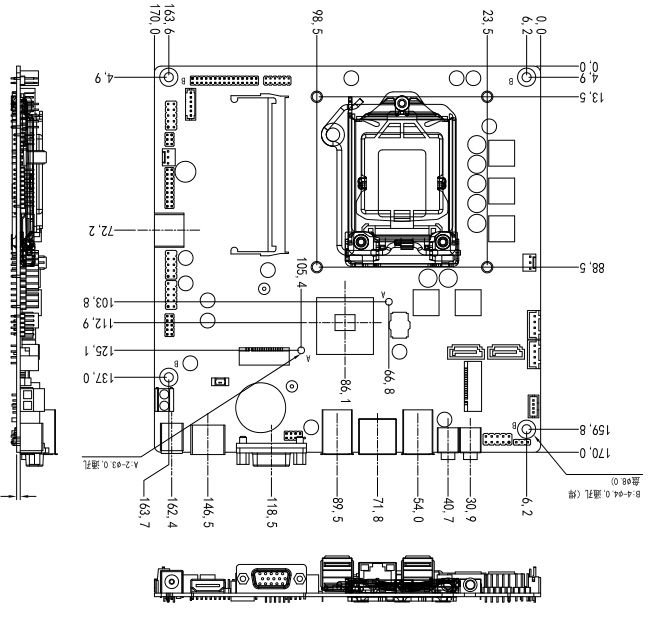

size

Order Info

Item NO.

Description

CPU Optional

TOP360B

Main chipset：Intel H310

CPU socket：LGA 1151

Memory type: 4*DDR4 memory slot

Intel8^th /9^th i3-i5-i7/Pentium/Celeron CPU

TOP360B
