N-BOX-J6

Model : N-BOX-J6

Description :
◆ with Baytrail-D/I/M serial Processor；
◆ J1900\\J1800\\E3845；
◆ DDR3 SODIMM 204 Socket Max support 8G；
◆ 6*Intel I211ATOr Intel I210 Gigabit LAN (optional)；
◆ Onboard 32/64/128G EMMC chip (optional);
◆ 1*RJ45 interface RS232 or RS485 (choose one);
◆ Single input DC power supply, DC12-19V power supply;
◆ size: 134*126*40.6mm;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ with Baytrail-D/I/M serial Processor；

◆ J1900\J1800\E3845；

◆ DDR3 SODIMM 204 Socket Max support 8G；

◆ 6*Intel I211ATOr Intel I210 Gigabit LAN (optional)；

◆ Onboard 32/64/128G EMMC chip (optional);

◆ 1*RJ45 interface RS232 or RS485 (choose one)

◆ Single input DC power supply, DC12-19V power supply;

◆ size: 134*126*40.6mm

Specification

? CPU	CPU	With Baytrail-D/I/M?serial Processor
	? CPU?package	? BGA
	? Chipset	? Baytrail-D/I/M?serial Processor
	? BIOS	? EFI BIOS
? Memory	? Technology Architecture	? Single channel DDR3L?1066/1333MHz
	? capacity	? Max support 8GB?DDR3L memory
	? Socket	? DDR3 SODIMM 204 Socket
? Video	? Graphics controller	? Intel HD Graphics
? Video	? HDMI	HDMImax support resolution?1920x1080

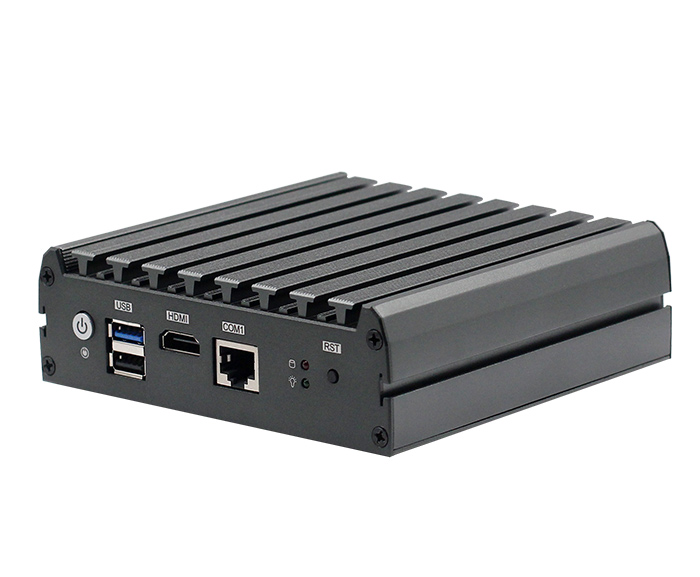

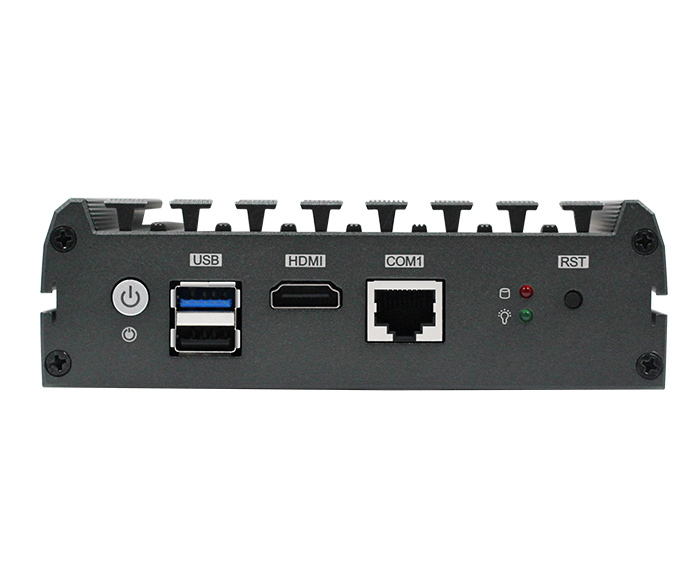

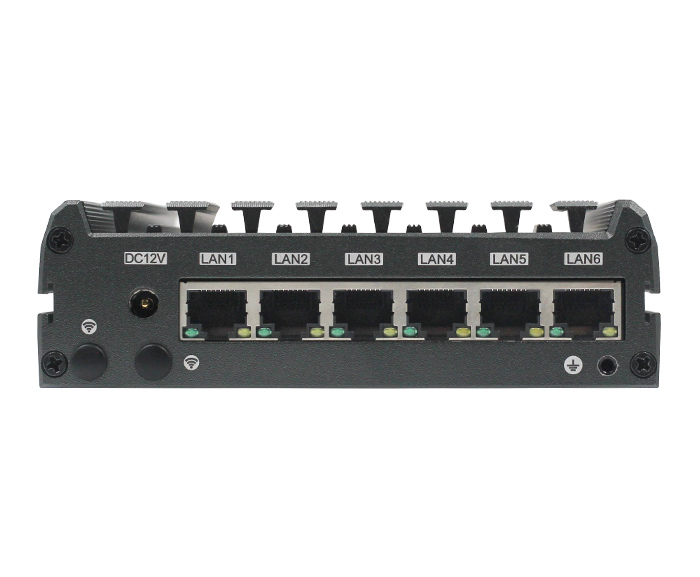

? I/O?backpanel	? Ports	1HDMI 1USB3.0 1USB2.0 6LAN 1Quick start button with indicator 1Reset button 1DC 1Power indicator 1*Hard disk indicator
? Internet	? controller	? 6*Intel I211ATOr Intel I210 Gigabit LAN (optional)
? Input or output interface	USB	? 1USB2.0 1USB3.0?max support+5V/1A
? Input or output interface	Com	? 1*RJ45 Port RS232 or RS485(optional)
Expansion bus	Mini-PCle	? 1*Mini-PCIe,?support?PCIE and USB protocol signal equipment
storage ? ?	SATA	? 1*standard SATA3 Port, max transmission rate 6Gb/s
	M-SATA	1*Mini-PCIe M-SATA Scoket,?support SANDISK?protocol，max transmission rate ?6gb/s
	EMMC	? Support 32/64/128G (optional)
power supply	Power type	Single input DC power supply, DC12-19V, +/- 5%
working environment	Operating temperature	-20℃ ~ +60℃
	storage temperature	-40℃ ~ +85℃
	Working humidity	0% ~ 90% relative humidity, no condensation
	Storage humidity	0% ~ 90% relative humidity, no condensation
System support	?	Windows7 Windows10 Linux Android
Measurement	size	13412640.6 mm
Measurement	weight	0.5KG
Certifications	?	CE,ROHS,FCC

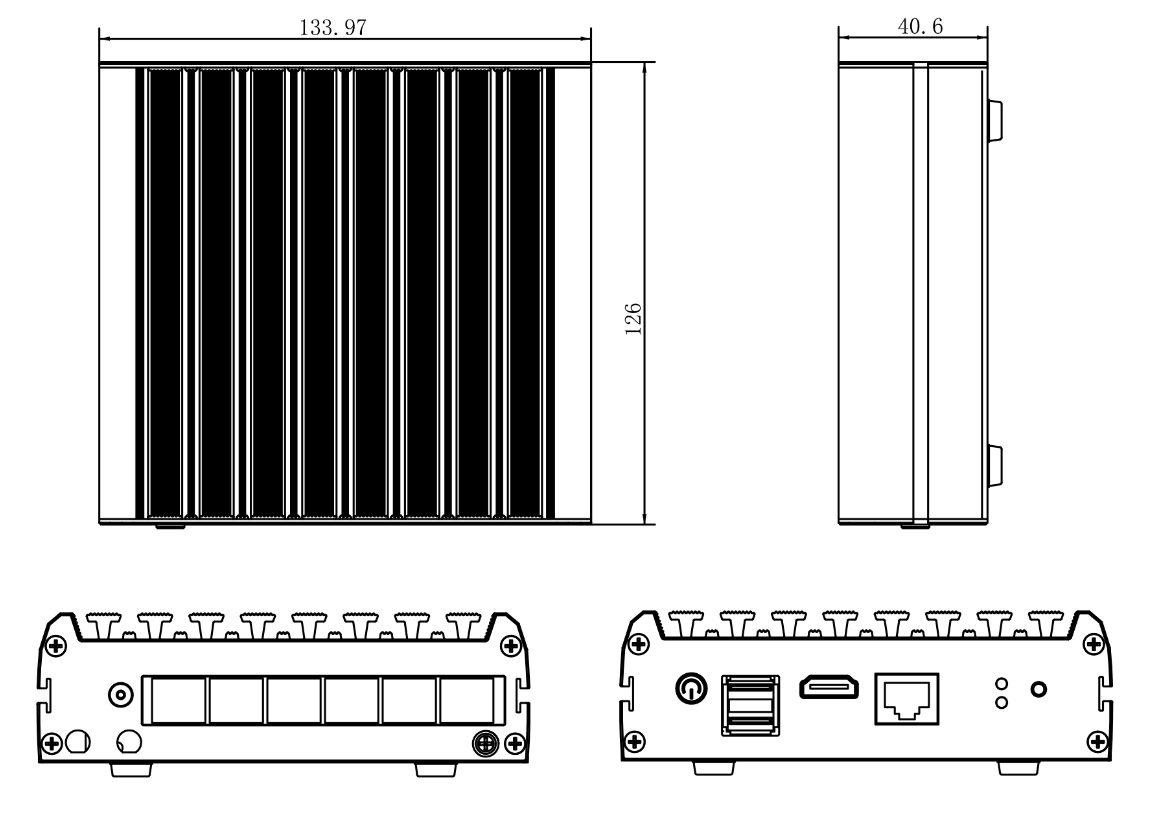

Size
Order information

Module

description

CPU?optional

N-BOX-J6

Integrated Baytrail-D/I/M CPU

DDR3 SODIMM 204 Socket?Max support 8gb ram

Integrated 32G/64/128G EMMC?chipset (Optional）

J1900(quad core）

2.0Ghz up to2.4Ghz

E3845(quad core）

1.91Ghz

J1800（dual core ）

1.6Ghz up to2.0Ghz

N-BOX-J6
