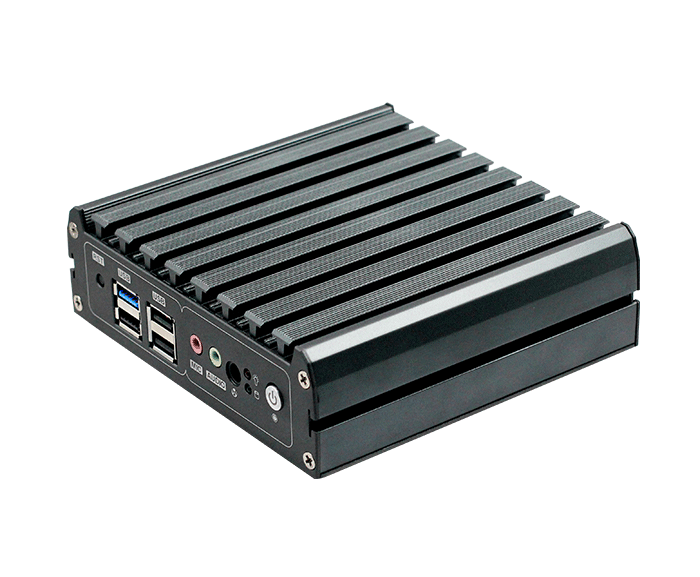

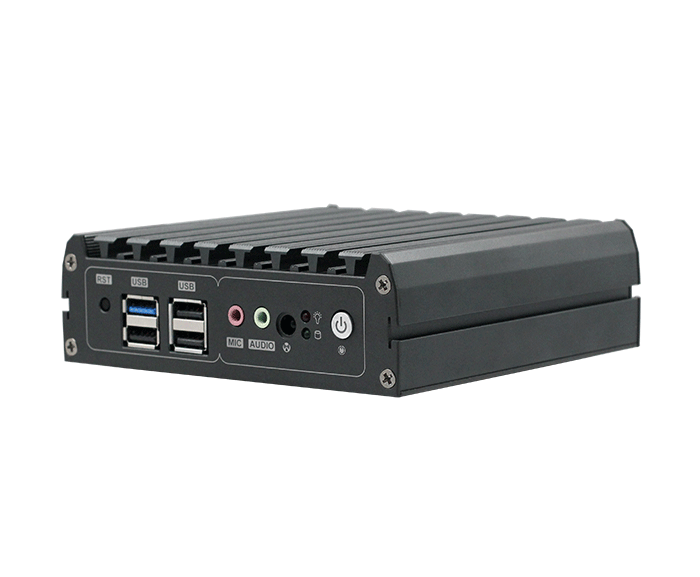

N-BOX-J1

Model : N-BOX-J1

Description :
◆ With Baytrail-D/I/M serial Cpu；
◆ J1900\\J1800\\N2806\\N2900；
◆ DDR3 SODIMM 204 Socket Ram socket Max support 8GB;
◆ 2*Intel I211AT Gigabit Ethernet；
◆ Onboard 32/64/128G EMMC Chipset（optional）;
◆ 1*RJ45 Port, RS232；
◆ 1*IR Infrared receiving port；
◆ Single input DC power supply, DC12-19V power supply；
◆ Size: 134*126*40.6 mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ With Baytrail-D/I/M serial Cpu；

◆ J1900\J1800\N2806\N2900；

◆ DDR3 SODIMM 204 Socket Ram socket Max support 8GB

◆ 2*Intel I211AT Gigabit Ethernet；

◆ Onboard 32/64/128G EMMC Chipset（optional）

◆ 1*RJ45 Port, RS232；

◆ 1*IR Infrared receiving port；

◆ Single input DC power supply, DC12-19V power supply；

◆ Size: 134*126*40.6 mm；

Specifications

? CPU	CPU	Support Baytrail-I/D/M serial CPU?(J1900 N2900 J1800 N2806)
	CPU?package	BGA
	Chipset	Support Baytrail-I/D/M serial CPU
	BIOS	EFI BIOS
Ram	Technology Architecture	Single channel DDR3L?1066/1333MHz
	capacity	Max support 8GB?Ram
	Socket	DDR3 SODIMM 204 Socket
? Video	Graphics controller	Intel HD Graphics
	DP	DP support Max resolution 2560*1600
	HDMI	HDMI?Max resolution?1920x1080
	Dual display	HDMI+DP Synchronous or asynchronous display

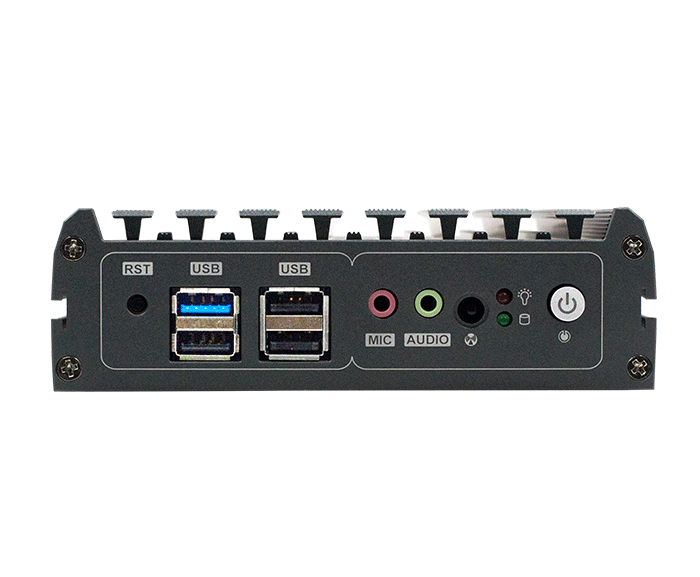

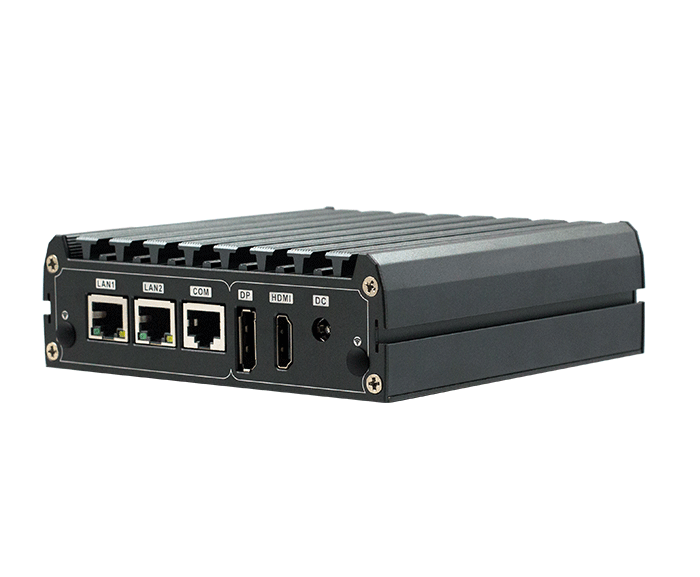

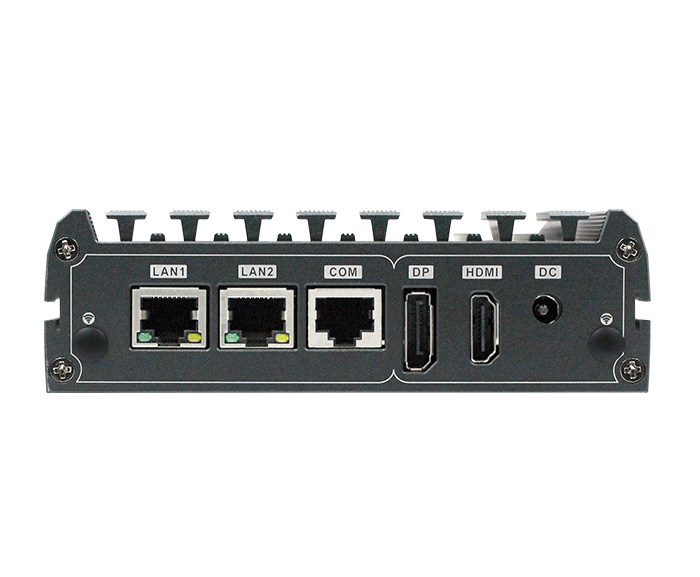

I/O?back panel	Ports	1DP?1HDMI 4USB 2LAN 1* quick start button with indicator light 1* restart button 1Line_out 1MIC 1* power indicator 1* hard disk indicator
Internet	Controller	2*Intel I211ATHigh-performance Gigabit LAN，RJ45?Port
? Input/output interface	USB	3USB2.0 1USB3.0?Max support+5V/1A
	Com	1*RJ45 Port RS-232
	Infrared	1*IR Infrared receiving port
	Audio	1LINE OUT 1MIC
Expansion bus	Mini-PCle	1*Mini-PCIe slot, only supports PCIE signaling devices
Storage	SATA	1*standard SATAII?Port, Maximum transfer rate 3Gb/s
	M-SATA	1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate 3gb/s
	EMMC	Support32/64/128G(optional）
POWER SUPPLY	Power Type	Wide Voltage 12-19V
POWER SUPPLY	Power consumption	20W
? WORKING ENVIRONMENT	Working temperature	-20℃ ~ +60℃
	Storage temperature	-40℃ ~ +85℃
	Working humidity	0% ~ 90%(non-condensing)
	Storage humidity	0% ~ 90%(non-condensing)
MEASURE	Size	13412640.6 mm
MEASURE	Weight	1.5KG
Certification	?	CE,ROSH,FCC

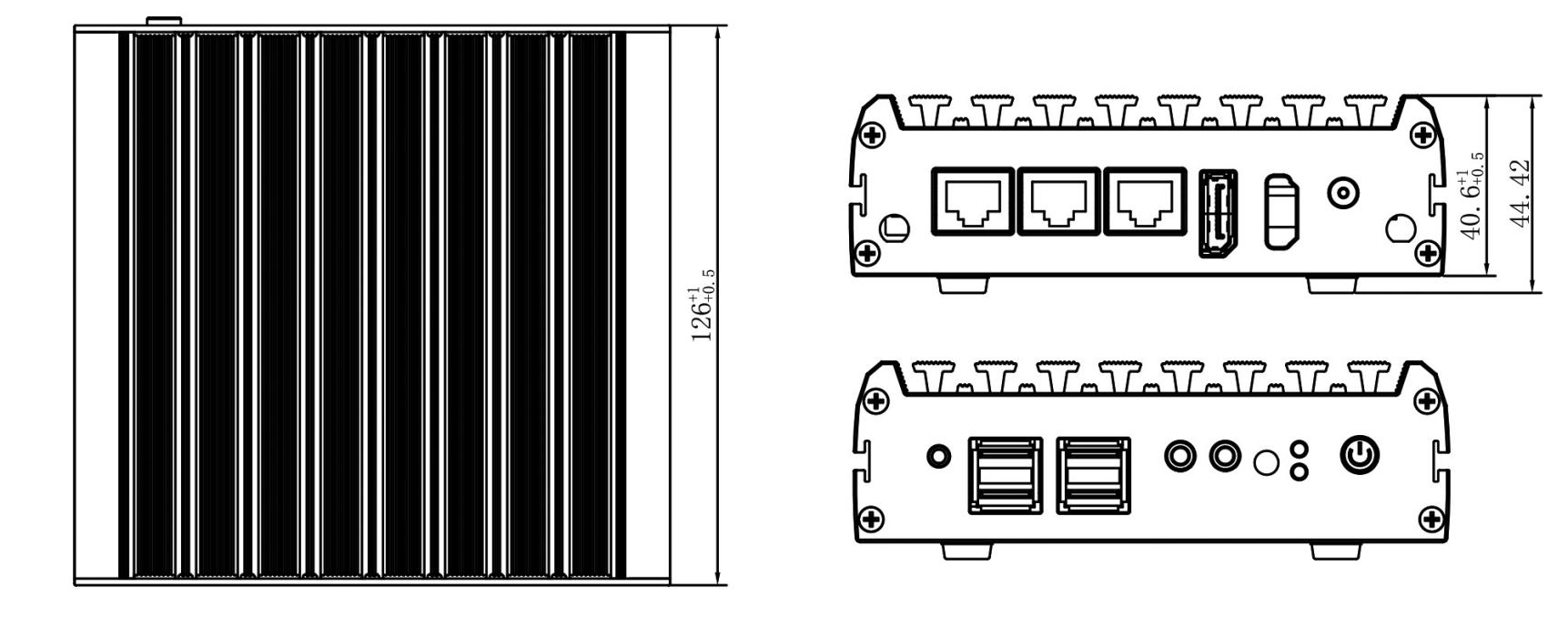

Size?

Order information

Model

description

CPU?Optional

?

BT19NA-J1900

Integrated Celeron Baytrail J1900

Quad core 2.0Ghz up to2.4Ghz

DDR3 SODIMM 204 Socket?ram ,max to 8gb

Embedded 32G/64/128G EMMC?chipset （optional）

J1900,N2900(quad core）

BT19NA-N2806

Integrated celeron Baytrail J1800

Dual core 1.6Ghz up to2.0Ghz

DDR3 SODIMM 204 Socket?ram socket ,max tobe 8gb ram

Embedded 32G/64/128G EMMC?chipset (optional）

J1800,N2806（dual core）
