Processor System

Intel Alder Lake-N series processors

EFI BIOS

Memory

1 x DDR5 SO-DIMM, max 16GB

Storage

1 x M.2 M-Key 2280 (PCIe_x 2 protocol)

Display

1 x HDMI2.0 interface, support 4K@60Hz

1 x DP1.4 interface, support 8K@60Hz

1 x Type-C interface, support 8K@60Hz

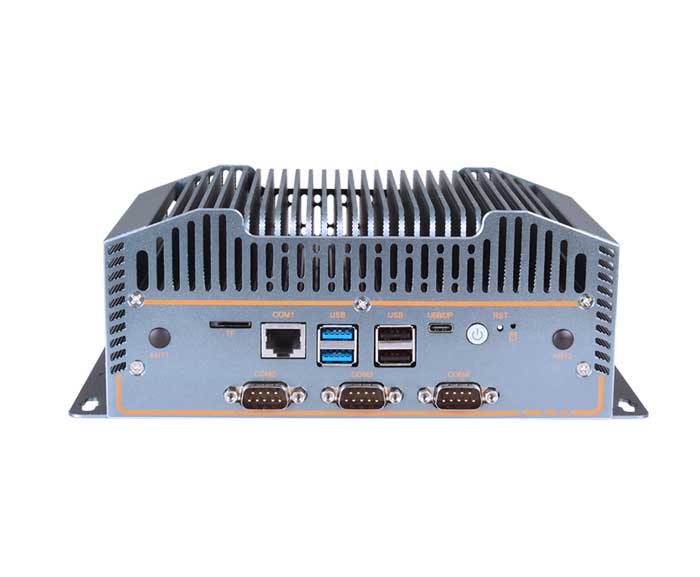

Front Panel Interface

4 x USB; 3 x DB9 COM

CONSOLE; Type-C; 2 x ANT

PWR SW; RST; HDD LED

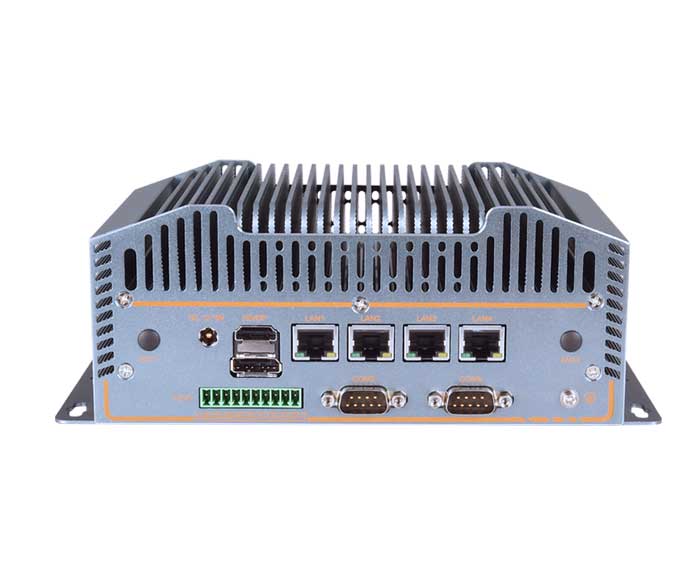

Rear Panel Connectors

4 x LAN (3 x Intel i226-V, 1 x RTL8156B, optional POE 48V/15W)

HDMI, DP, DC JACK

2 x DB9 COM; 8-Bit GPIO; 2 x ANT

Extended Functionality

Mini PCIe (WIFI/BT/4G/mSATA)

Power Supply

DC12V

Work Environment

Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%

Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%

Operating System

Windows 10, Windows 11, Linux

Host Size

123 x 220 x 80 mm

Single Packing Size

26 x 16 x 19.5 cm

Gross Weight

About 2.5Kg
