FA-906U

Model : FA-906U

Description :
◆Integrated Intel 4th/5th Mobile Haswell/Broadwell-U single CPU；
◆ 1 *DDR3L SODIMM 204 Socket；
◆ Proving 1*HDMI；
◆ 6*Intel I1211AT Lan Port；
◆ Support power-on automatic boot function, jumper selection；
◆ Single input DC power supply, DC12-19V power supply；
◆ form factor: 126.3*122.3*52.2mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆Integrated Intel 4^th/5th Mobile Haswell/Broadwell-U single CPU；

◆ 1 *DDR3L SODIMM 204 Socket；

◆ Proving 1*HDMI；

◆ 6*Intel I1211AT Lan Port；

◆ Support power-on automatic boot function, jumper selection；

◆ Single input DC power supply, DC12-19V power supply；

◆ form factor: 126.3*122.3*52.2mm；

Specification

Model	FA-906U

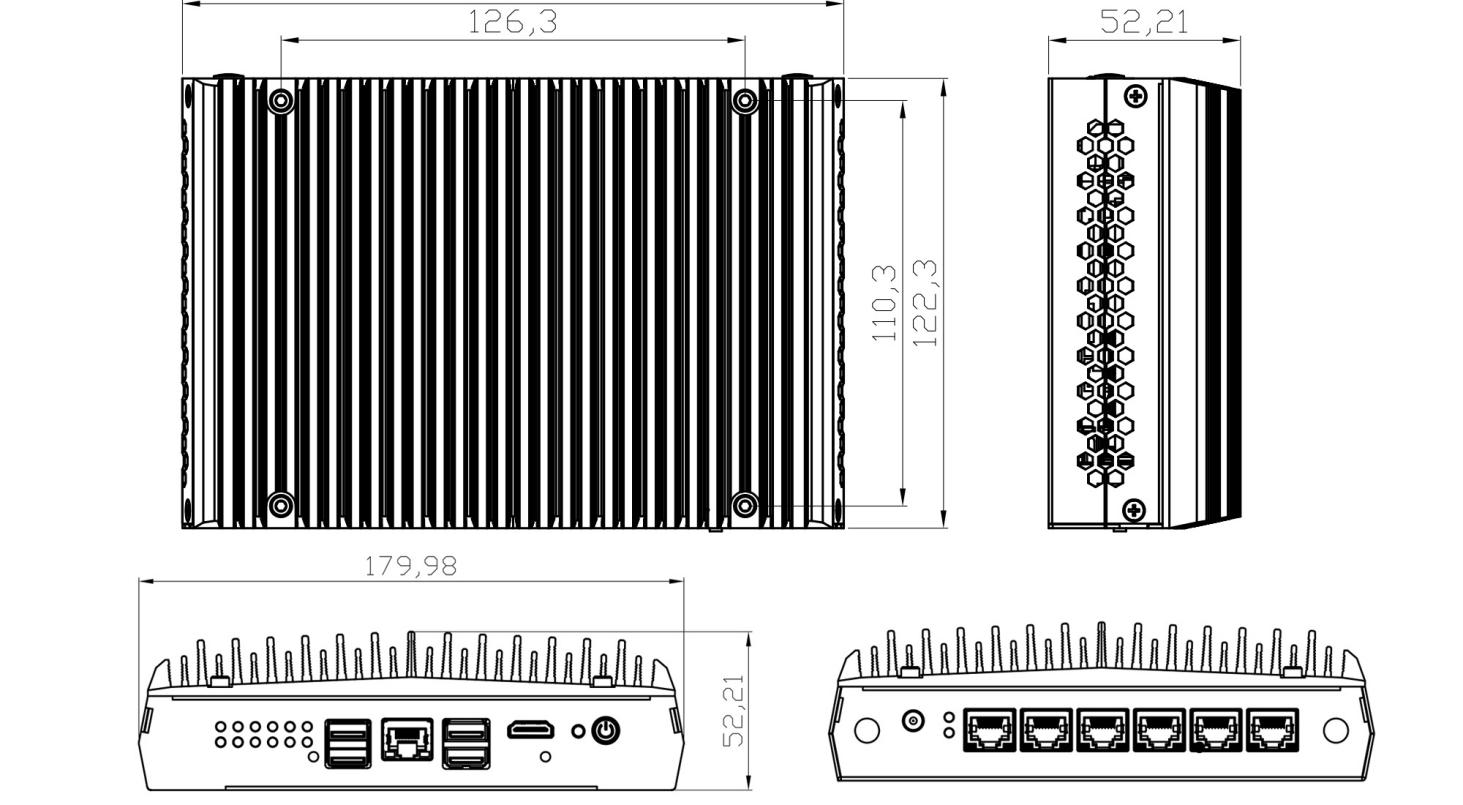

Size	126.3122.352.2mm
Processor	Integrated Intel 4^th/5th Mobile Haswell/Broadwell-U?single chipset CPU
Chipset	Intel Single chipset
Ram socket	1*DDR3L?SODIMM 204 Socket

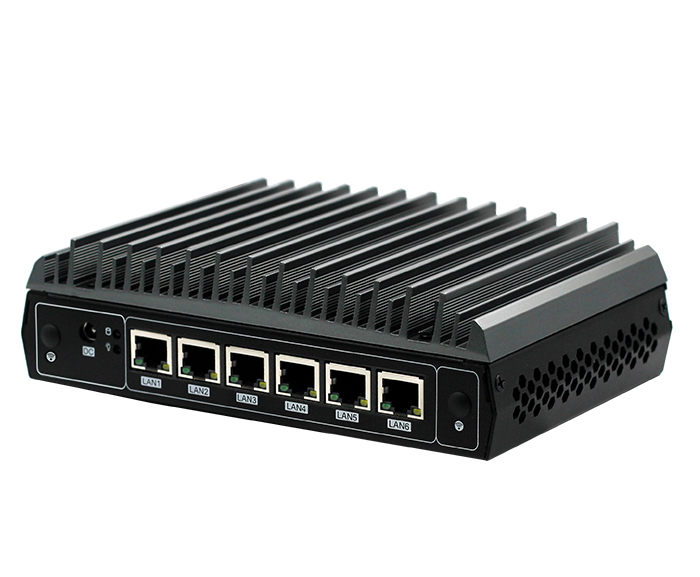

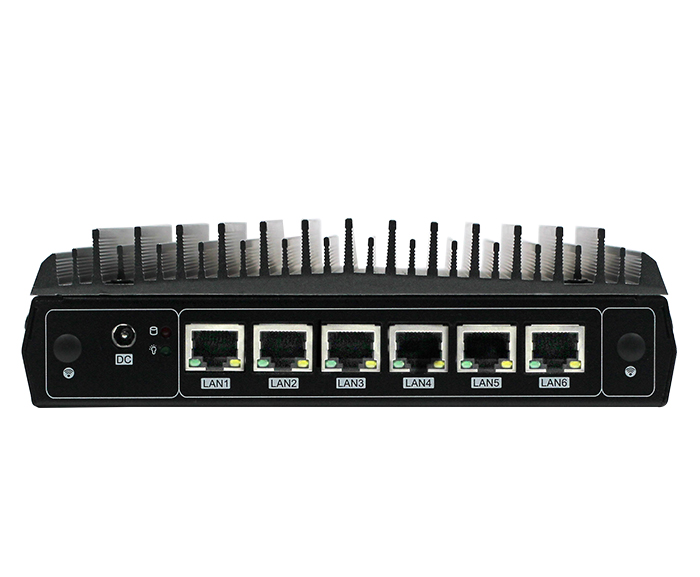

Lan port	Onboard?6*?Intel I211AT Gigabit Ethernet Port
storage	1NGFF_SSD slot; 1SATA3.0 1*M-SATA
color	Black

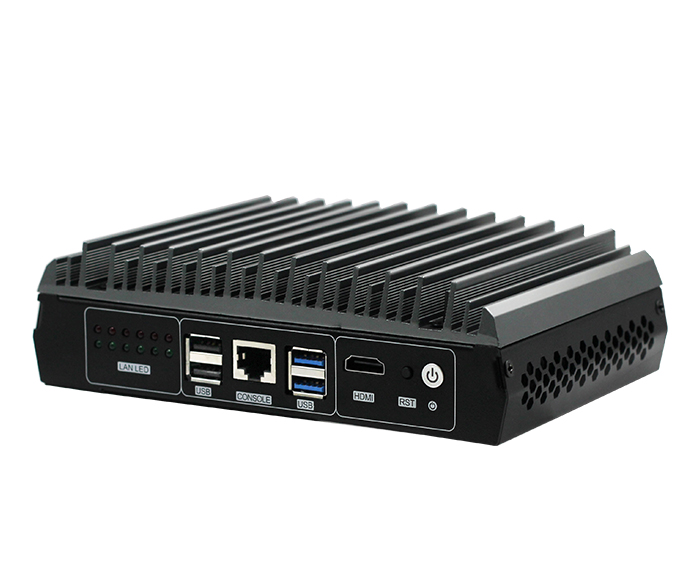

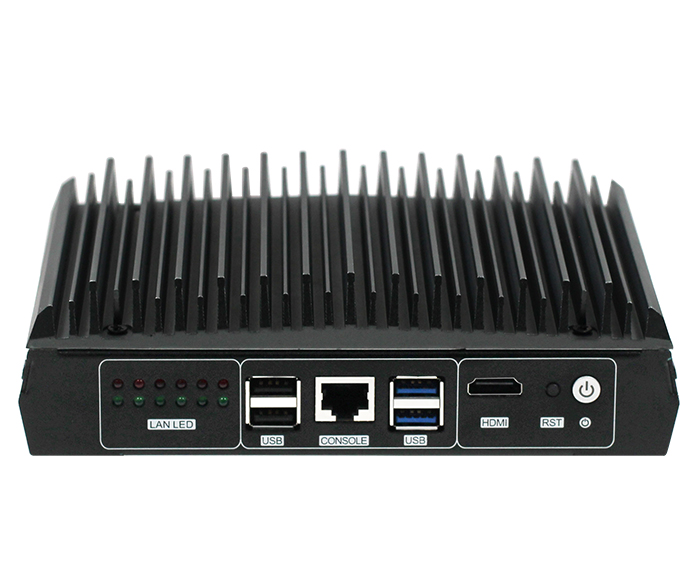

Panel interface	6LAN ?1HDMI ?1DC ?2USB3.0?2USB2.0 1RJ45 Port COM 1* switch button 1* reset button 1* power indicator 1* hard disk indicator 6* NIC indicator

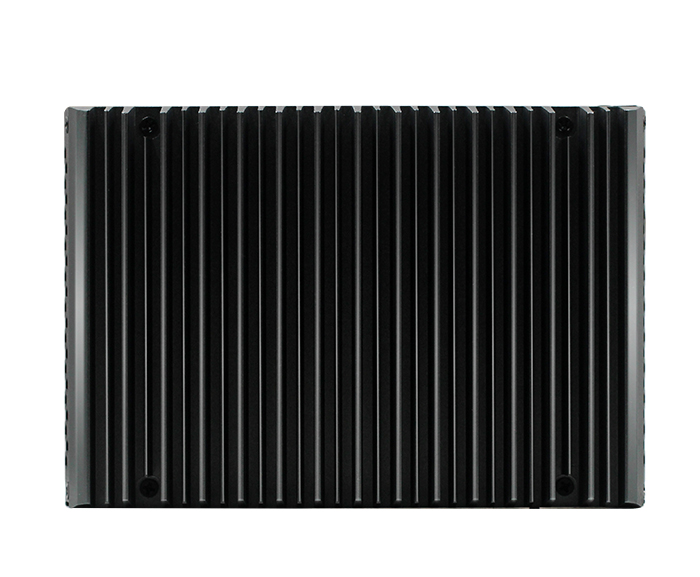

Material	Aluminum
package

?Size?

Order information

Inner motherboard model

Description

CPU optional

?

HU80Z3A6L/HU90Z3A6L-I3

Integrated Intel 4th/5th MobileHaswell/Broadwell-U

?

Support 4rd/5rd?Intel? Core? i3

example：I3-4100U，I3-5010U

?

?

HU80Z3A6L/HU90Z3A6L-I5

Integrated Intel 4th/5th MobileHaswell/Broadwell-U

?

Support 4rd/5rd?Intel? Core? i5

?????????Example：I5-4200U,I5-5200U

?

?

HU80Z3A6L/HU90Z3A6L-I7

Integrated Intel 4th/5th MobileHaswell/Broadwell-U

?

Support 4rd/5rd?Intel? Core? i7

Example：I7-4500U,I7-5500U
