OPS118S

Model : OPS118S

Description :
◆ Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU；
◆ H110/H170 high-speend chipset；
◆ Proving 1*VGA,1*HDMI，4*USB3.0，2*USB2.0 1*COM；
◆ support OPS expansion，regard as satandard INTEL OPS-C+ Port ；
◆ Support power-on automatic boot function, jumper selection；
◆ Single input DC power supply, DC12-19V；
◆ size:194*180*30mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Support LGA1151 socket Intel 6^th and 7^th

i3-i5-i7/Pentium/Celeron CPU

◆ H110/H170 high-speend chipset；

◆ Proving 1*VGA,1*HDMI，4*USB3.0，2*USB2.0 1*COM

◆ support OPS expansion，regard as satandard INTEL OPS-C+ Port

◆ Support power-on automatic boot function, jumper selection；

◆ Single input DC power supply, DC12-19V；

◆ size:194*180*30mm；

Specifications:

Model	OPS118S
size	19418030mm
Processor	Support LGA1151?socket Intel 6^th?and 7^th^?i3-i5-i7/Pentium/Celeron CPU G4400/G4560/G5400 I3-6100/I3-7100 I5-7200/I5-7400 I7-6700/I7-7700
Chipset	H110/H170?high-speed chipset
Ram socket	1?*DDR4?SODIMM 260?Socket, max to be 32GB
Display Interface	HDMI and VGA
Lan	Onboard?1*Gigabit lan Port
Audio	onboard?HDA ALC662
storage	1NGFF??1SATA3.0 1*SATA_HDD
color	black

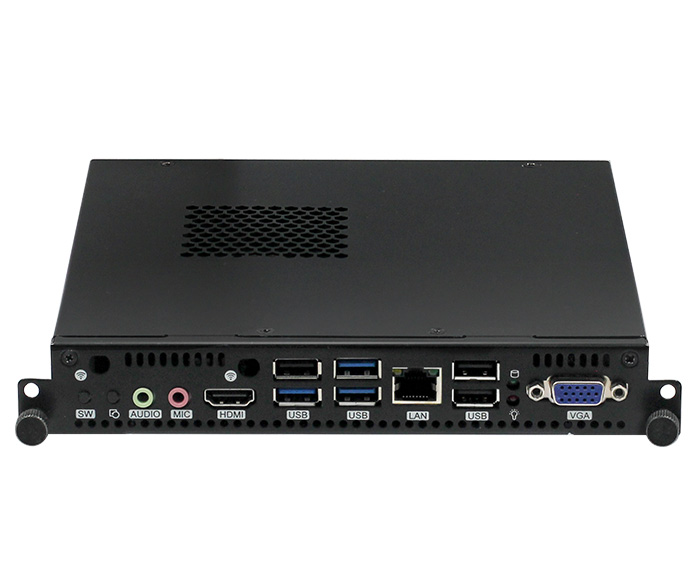

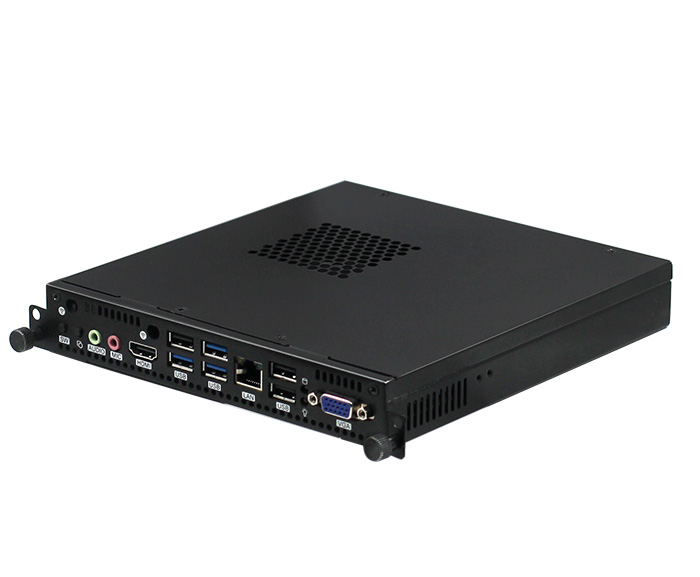

frontpanel interface	1LAN ?1HDMI ?1VGA ?1COM ?1DC ?1MIC-IN ?1LINE-OUT??3USB3.0?4.USB2.0???2*WIFI?antenna Ports
OPS interface board	1LINE-OUT ?1HDMI ?1DP ?1DC ??3USB ??1Power on /off button
Standard accessories	1OPS Computer /1driver CD
Operate system	Windows8.1 Windows 10 Linux

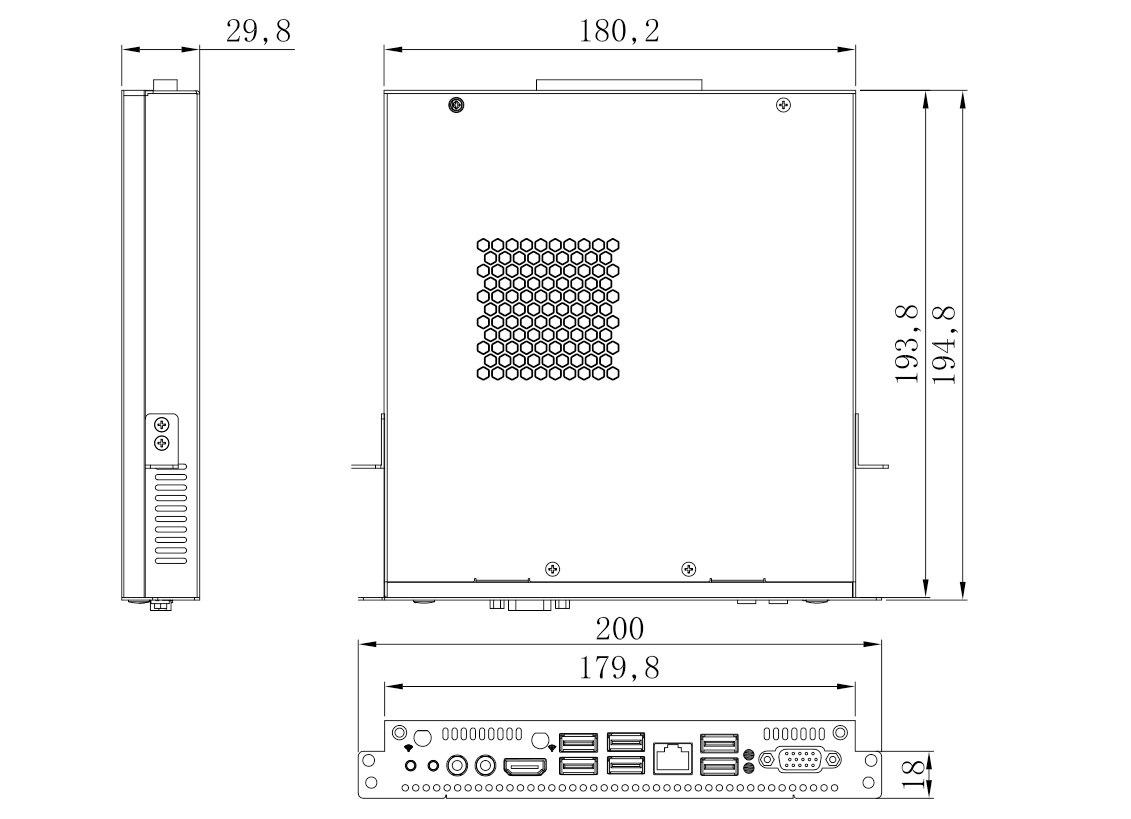

Size

order information

Inner Motherboard

description

CPU Optional

OPS110D

Support LGA1151?socket Intel 6^th?and 7^th

i3-i5-i7/Pentium/Celeron CPU

H110/H170?high-speend chipset

? ? ? ? ? ? ??

OPS118S
